example using 3 PCs and a hub
|
example using 2 PCs and crossover cable |
|

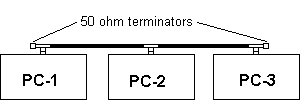

Example using 3 PCs and coax (10-base-2) cable. On each PC, a
BNC-T connector is placed. Cable is run between all PCs in the chain.
Note that a terminator must be placed on each end. |
|
|
